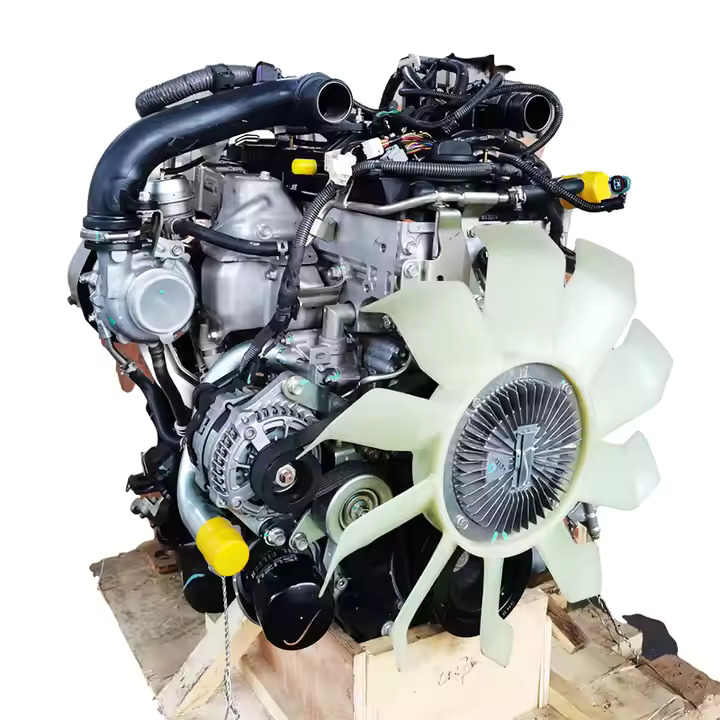

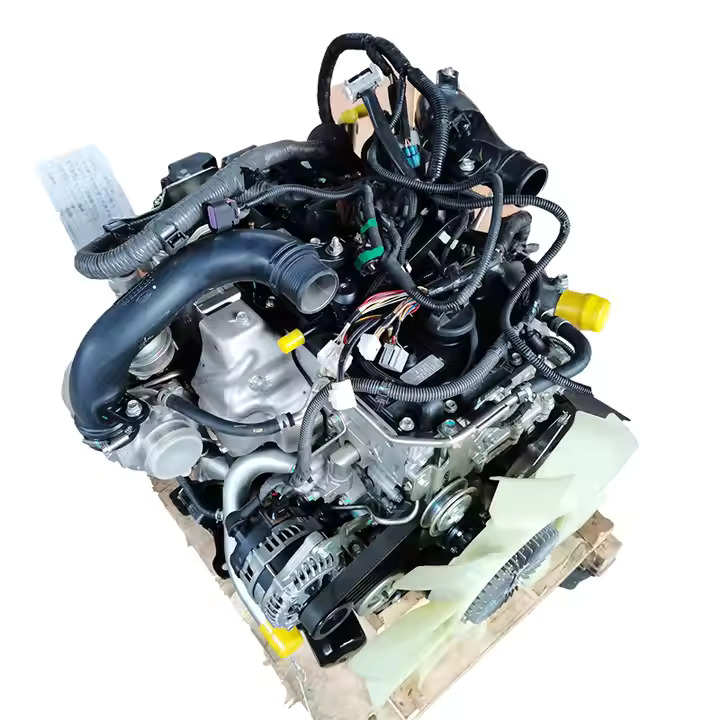

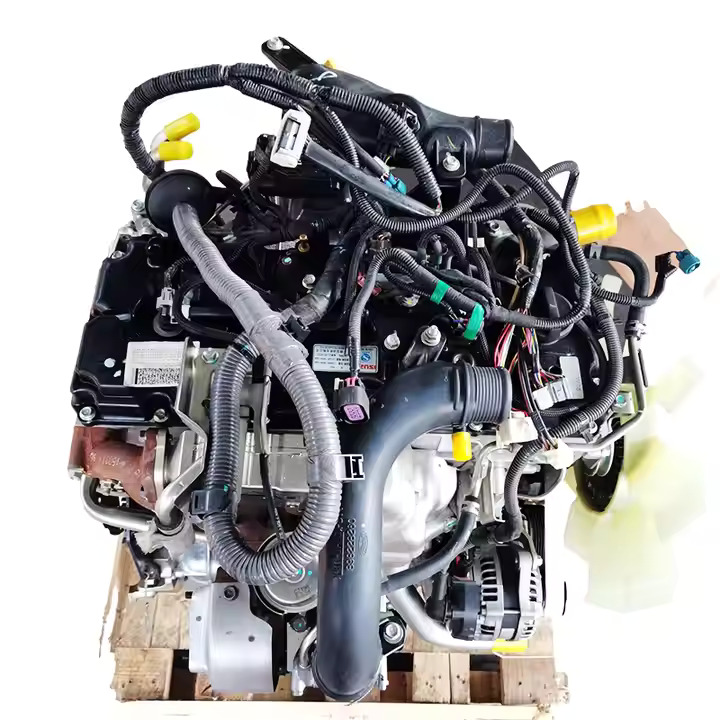

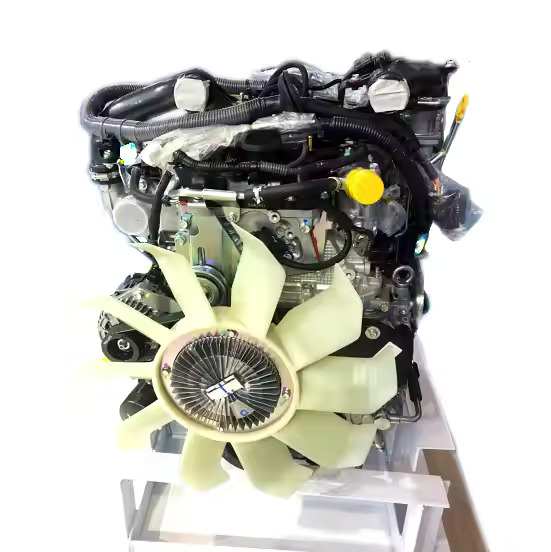

The newly developed RZ4F engine (2.2L displacement) delivers high output and torque of 120 kW / 400 Nm while maintaining excellent durability and minimizing noise levels. By combining improved combustion and optimized turbo settings with the new 8-speed AT, both power and fuel efficiency have been significantly improved compared to existing models.
Transmission
The 8-speed AT with the wider gear range, optimized torque, high performance lockup dampers, and gear shift map settings tailored to the RZ4F engine enables improved start-up capability, acceleration, fuel economy and overall performance.
Main specifications (Thailand domestic model)
・D-MAX 4x2 Hi-Lander 2.2 M 8AT
Total length(mm) |
5,280 |
Total width(mm) |
1,870 |
Total height including roof rail (mm) |
1,810 |
Wheelbase (mm) |
3,125 |
Wheelbase (mm) |
1,570 |
Minimum turning radius |
6.1 |
Tires |
265/60R18 |
Engine (RZ4F)(cc) |
2,164 |
Max Power(kW/rpm) |
120/3,600 |
Max Torque(Nm/rpm) |
400/1,600-2,400 |
Transmission |
8AT |
Empty Weight(kg) |
1,895 |
・MU-X 4x2 2.2 RS 8AT
Total length(mm) |
4,860 |
Total width(mm) |
1,885 |
Total height including Shark Fin Antenna (mm) |
1,875 |
Wheelbase (mm) |
2,855 |
Wheelbase (mm) |
1,570 |
Minimum turning radius |
5.6 |
Tires |
265/50R20 |
Engine (RZ4F)(cc) |
2,164 |
Max Power(kW/rpm) |
120/3,600 |
Max Torque(Nm/rpm) |
400/1,600-2,400 |
Transmission |
8AT |
Empty Weight(kg) |
2,045 |
|
